Low resolution control system for the HDV camera with Pan / Tilt / Zoom
 |

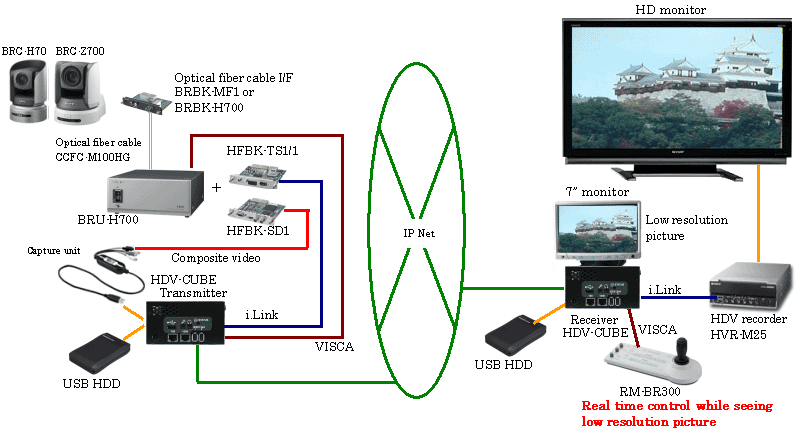

It transmits the video signal of HDV camera (BRC-Z700, BRC-H700) with Pan / Tilt / Zoom through IP network and it is
possible to control the camera from the long-distance place. |
 |
|
HDV-CUBE transmits HDV quality without deterioration of high-quality signal of BRC-Z700, BRC-H700. |
|
|
As for the operation by the remote control such as Pan/Tilt, Zoom/Focus from long-distance place, the response of the feedback becomes important. Therefore, while seeing the analog video of the low resolution which can compensate the delay of the HDV signal, it realized the smooth operation by the real time feedback. |
|
|
For IP transmission, it is equipped with powerful error correction (FEC, ARQ). |
|
|
It outputs received data in HDV through i.Link. The various recorders and the converters can be connected with. |
Transmitter(HDV-CUBE)
| Input |
i.Link(6P S400 HDV MPEG-TS)
Analog composite(NTSC RCA pin) |
| LAN |
100Base-TX (RJ-45 Full Duplex) |
| HDD |
160GByte (USB I/F) |
| Camera |
BRC-Z700, BRC-H700 |
| Control |
VISCA (RS-232C 9Pin D-SUB with special cable) |
| Size |
125(W)×68(H)×93(D)mm |
| Weight |
900g |
| Power |
AC100-220V 65W (AC adaptor) |
Receiver(HDV-CUBE)
| Output |
i.Link(6P S400 HDV MPEG-TS) |
| LAN |
100Base-TX (RJ-45 Full Duplex) |
| HDD |
160GByte (USB I/F) |
| Recorder |
HVR-M15 / M25 / M35
Miranda HD Bridge DEC
NEL HT1000
Canopus ADVC-HDM1 |
| Control |
VISCA (RS-232C 9Pin D-SUB with special cable) |
| Size |
125(W)×68(H)×93(D)mm |
| Weight |
900g |
| Power |
AC100-220V 65W (AC adaptor) |
|
