 | Wireless HDV Camera transmission system realized by using commercial wireless LAN equipment. |
| Without setting up a cable, it transmits High Definition(HDV) or Standard Definition (DV) picture. |
| Light-weight transmitter can be driven by battery, and it is possible to operate by attaching to the body (wearable). Mobility is very good. |
| It realizes stable communication by powerful FEC, ARQ function. |
| It is equipped with the recording feature in the transmitter, receiver together. If a picture is recorded in the transmitter, it doesn't loose an important picture even if a line-intensity becomes bad. |

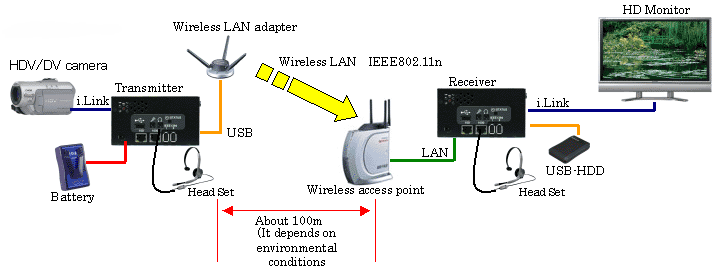

Using the commercial wireless LAN eauipment (IEEE802.11n), it realized wireless IP transmission of HFV and DV.
With the powerful error correction processing such as FEC, ARQ, the wireless transmission of about 100 m or more is possible. (It depends on environmental conditions.)
The i.Link connection of all HDV cameras which are sold in market from the consumer use to professional business use is possible. |
It transmits MPEG-TS of HDV with high quality without re-encoding it.
By this transmission, the receiver which received the signal outputs a receive-data again in i.Link as the about 30 Mbps HDV signal. |
Light-weight transmitter can be driven by battery.

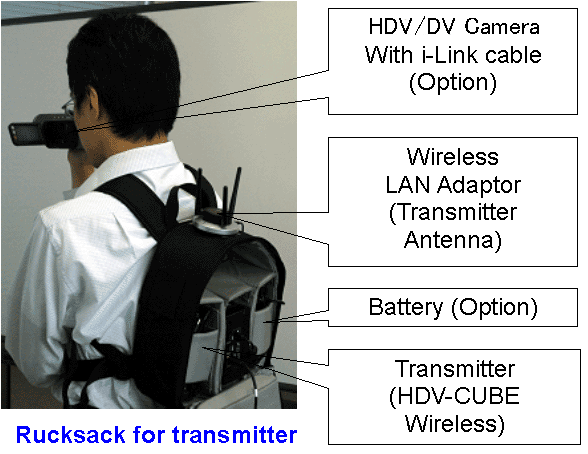

With the special attachment, it is possible to attach to the body (wearable) and to attach to the battery installation point of the camera. |

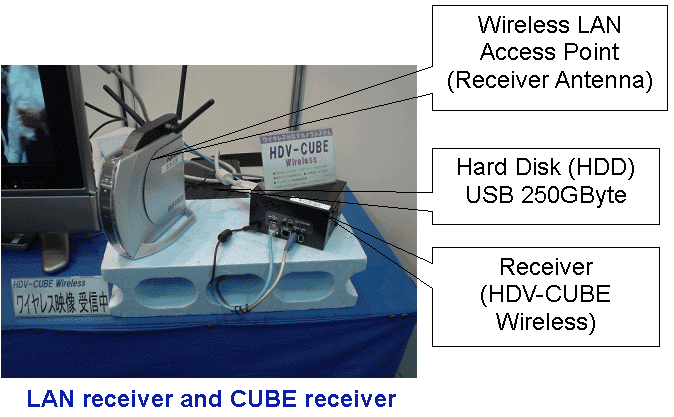

The portable HDD of the USB connection can connect with the transmitter.
It records the data to be sending to this HDD as MPEG-TS and it supports back-up when the transmission breaks off.
The back-up data of the HDD can be output to the receiver by i.Link connection. |
Transmitter Specifications
| CPU |
Pentium-M 1.1GHz |
| i.Link |
S400 6Pin ×2 |
| Wireless |
USB Wireless Adapter |
| Power |
DC12V(57W) |
| Dimension |
128(W)×75(H)×105(D) mm |
| Weight |
900g |
Receiver Specifications
| CPU |
Pentium-M 1.1GHz |
| i.Link |
S400 6Pin ×2 |
| Wireless |
Wireless Access Point |
| Power |
DC12V(57W) |
| Dimension |
128(W)×75(H)×105(D) mm |
| Weight |
900g |
Notice: This product was developed jointly with Nippon Hoso Kyokai (NHK)
|
